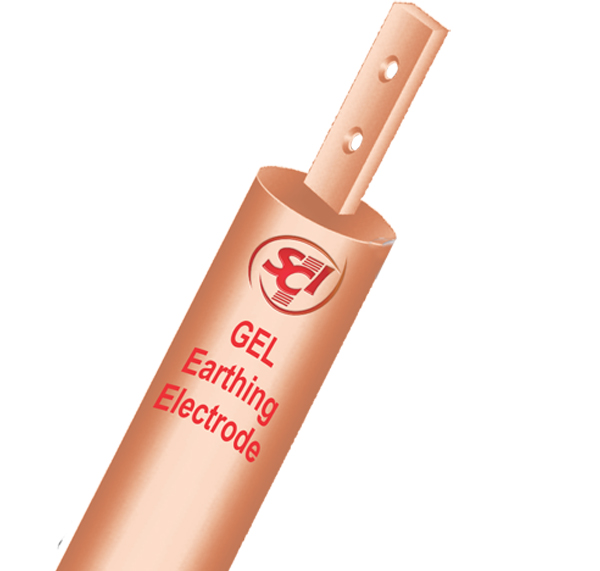

Copper Earthing Electrode


Copper Earthing Electrode :

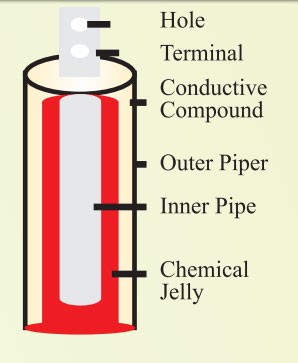

" SCI PIPE-IN-PIPE" TECHNOLOGY ( Out Pipe, Inner pipe are made by copper ) This Technology concept involves pipe and 2 to 3mm thickness of Copper pipe inside pipe will filled with a specially developed crystalline, hygroscopic gel.

Technical Specification



SCI PIPE IN PIPE TECHNOLOGY:


MODEL

LEANGHT (L)
(MM)

OUTER DIA.
(IN MM)

INTERNAL DIA
(IN MM) (PIPE)

TERMINAL
(DIA IN MM)

SCI – 50/2

2000 MM

50MM

25MM

40X6 MM

SCI- 50/3

3000MM

50MM

25MM

40X6MM

SCI- 60/2

2000 MM

80 MM

40 MM

50X6 MM

SCI- 60/3

3000 MM

80MM

40MM

50X6MM

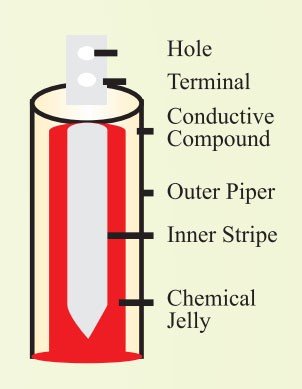

SCI PIPE IN STRIP" TECHNOLOGY :

(Outer Pipe and Inner strip are made by copper electrode will filled with a specially developed crystalline, hygroscopic gel.)

MODEL

LEANGHT (L)
(MM)

OUTER DIA.
(IN MM)

INNER STRIP
(IN MM)

TERMINAL
(IN MM)

SCI – 50/2

2000 MM

50 MM

25x3 MM

40X6 MM

SCI- 50/3

3000MM

50 MM

25x3 MM

40X6 MM

SCI- 60/2

2000 MM

80 MM

32x6 MM

50X6 MM

SCI- 60/3

3000 MM

80 MM

32x6 MM

50X6 MM

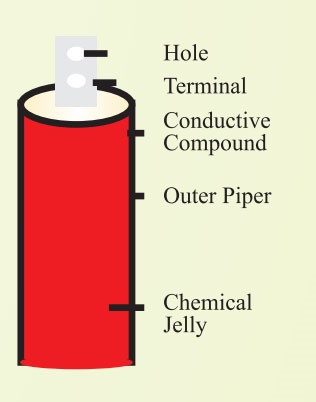

SCI PIPE TECHNOLOGY:



(Outer pipe made by copper and electrode will filled with a specially developed crystalline, hygroscopic gel.)

MODEL

LEANGHT (L)
(MM)

OUTER DIA.
(IN MM)

TERMINAL

SCI – 50/2

2000 MM

50 MM

40X6

SCI- 50/3

3000MM

50 MM

40X6

SCI- 60/2

2000 MM

80 MM

50X6

SCI- 60/3

3000 MM

80 MM

50X6
